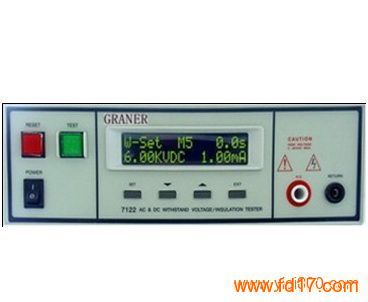

7110系列实用数位合成型耐压绝缘测试仪

放大图片	产品型号：	7110,7112,7120,7122
	产品品牌：	GRANER
	当前价格：	面议
	最小起订：	不限
	供货总量：	不限
	所在地：	广东东莞市
	发布时间：	2020-04-24 19:16

	查看更多电子测量仪器供应信息

全隆电子仪器经营部

联系人：韩蒋龙先生((业务部经理))

电话：0769-81289097

手机：13725812261

传真：0769-81289097

地址：清溪镇香芒西路337号天众电子城AF48

邮编：523658

网址：http://www.fd17.com/han11/

E-mail：470393926@QQ.com

详细信息

产品说明
●技术参数
MODEL 7110 7112 7120 7122
AC WITHSTAND VOLTAGE
Output Rating 5KVAC/12mA
Range Resolution Accuracy
Output Voltage，KVAC 0-5.00 0.01 ±( 2% of setting +5V )
Output Frequency 50Hz/60Hz±100ppm，User Selection
Output Waveform Sine Wave，THD<2%( Resistion Load )，Crest Factor = 1.3-1.5
Output Regulation ±( 1% of output +5V )，Form no load full load
SETTINGS
Hi-Limit AC Current，mA 0.10-12.00 0.01 ±( 2% of setting +2counts )
Lo-Limit AC Current，mA 0.00-12.00 0.01 ±( 2% of setting +2counts )
Ramp Time，second 0.1-999.9 0.1 ±( 0.1% + 0.05sec )
Dwell Time，second 0，0.2-999.9 0.1
( 0=continuous )
Arc Detection 0，1-9 ranges ( 0=OFF，9 is the most sensitivity )
DC WITHSTAND VOLTAGE（7120，7122 ONLY）
Output Rating 6KVDC/5mA
Output Voltage，KVDC 0-6.00 0.01 ±( 2% of setting +5V )
Output Ripple < 5% ( 6KV/5mA at Resistive Load )
SETTINGS
Hi-Limit DC Current，mA 0.02-5.00 0.01 ±( 2% of setting +2counts )
Lo-Limit DC Current，mA 0.00-5.00 0.01 ±( 2% of setting +2counts )
Ramp Time，second 0.1-999.9 0.1 ±( 0.1% + 0.05sec )
Dwell Time，second 0，0.2-999.9 0.1
( 0=continuous )
Arc Detection 0，1-9 ranges ( 0=OFF，9 is the most sensitivity )
Discharge Time ≦200msec
7110/7112/7120/7122实用数位合成型耐压/绝缘测试仪
MODEL 7110 7112 7120 7122
INSULATION RESISTANCE ( 7112，7122 ONLY )
Output Rating 1KVDC/1000MW
Output Voltage，KVDC 0.10-1.00 0.01 ±( 2% of setting +3V )
SETTINGS
Hi-Limit Resistance，MW 0，1-1000（0=OFF ) 1 ±( 3% of setting +2counts ) at ≧ 500VDC
Lo-Limit Resistance，MW 1-1000 1 ±( 7% of setting +2counts )at ＜500VDC
Delay Time，second 0，0.5-999.9 0.1 ± ( 0.1% + 0.05sec )
( 0=continuous )
GENERAL
InputVoltage AC 115/230VAC±15%，50/60Hz±5%，Fuse 3.15A Fast
PLC Remote Control Input: Test，Reset
Output: Pass，Fail，Processing
Memory 5 Sets store/Recall of each Memory，4Test Mode Selectable ( W，I，W-I，I-W Only 7112，7122)
Display 16×2 LCD with back light
Key Lock To prevent unauthorized alteration of test parameters
Calibration Build-in software and external calibrated meters
Environment 0-40℃，20-80%RH
Dimension/Net Weight 280mm(W)×89mm(H)×370mm(D)/9Kg
※Ordering Information※---------------------------------------------------------------------------------
7110 AC Withstand Voltage Tester
7112 AC Withstand Voltage / Insulation Resistance Tester
7120 AC/DC Withstand Voltage Tester
7122 AC/DC Withstand Voltage / Insulation Resistance Tester
