产品型号： | UTKW |
| 产品品牌： | 日本北泽KITZ阀门 | |
| 产品价格： | 666元/个 | |
| 所 在 地： | 河南 郑州市 | |
| 发布日期： | 2021-07-04 | |
 |
||
详细说明

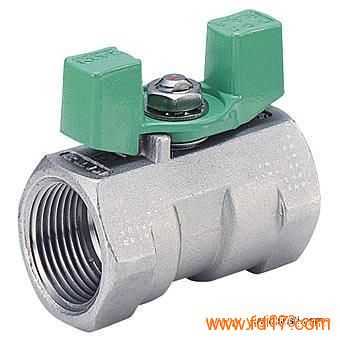

KITZ UTKW不锈钢手动螺纹球阀
UTKW
品牌：日本北泽KITZ阀门
北泽丝扣TUKW不锈钢球阀，KITZ UTKW螺纹球阀，不锈钢UTKW球阀，萨孚流体控制
相关产品：不锈钢阀门，流体控制解决方案，不锈钢管件，卫生级阀门，卫生级设备，不锈钢气动阀门，不锈钢电动阀门，不锈钢工艺设备，进口阀门，进口设备，自控系统，智能控制设备，气动元件，电动执行机构，
供应商：萨孚流体控制（上海）有限公司
Z不锈钢球阀 > KITZ螺纹球阀
KITZ-UTKW Wing Handle Screwed Ends Ball Valves
产品ID: KITZ-UTKW
产品型号: UTKW
►Body Material :A351 CF8 J92600 SCS13A
►TYPE 600 CAST STAINLESS STEEL,BALL VALVES,REDUCED BORE,SCREWED ENDS.WING HANDLE.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARDDouble reduced bore, Uni-body design, Threaded ends One-piece body Ball Seat: Glass filled PTFE
产品概述
技术特点
性能&规格
部件材质
适用标准
品牌信息
TYPE 600 CAST STAINLESS STEEL,BALL VALVES,REDUCED BORE,SCREWED ENDS.WING HANDLE.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARDDouble reduced bore, Uni-body design, Threaded ends One-piece body Ball Seat: Glass filled PTFEApprovals:RoHS 1/4 -3/4 inch(8 -20 mm) approved
Test Pressure (MPa) Inspection Standard: KITZ St'd-1 *=Periodic Test
Water Air
Shell 6.20*(1/4-1inch,8-25mm) 0.6(1/4-1inch,8-25mm)
Seat - 0.6(1/4-1inch,8-25mm)
Back Seat - -
Size Range
inch 1/4 3/8 1/2 3/4 1
mm 8 10 15 20 25
