产品型号： | UTH |
| 产品品牌： | 日本北泽KITZ阀门 | |
| 产品价格： | 666元/个 | |
| 所 在 地： | 河南 郑州市 | |
| 发布日期： | 2020-08-14 | |
 |
||
详细说明

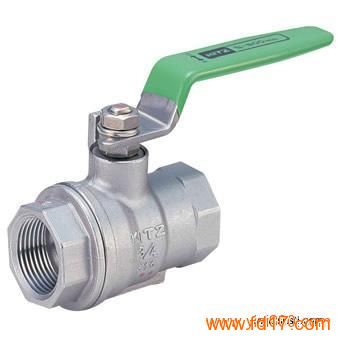

KITZ UTH不锈钢二片式螺纹球阀
UTH
品牌：日本北泽KITZ阀门
北泽丝扣UTH不锈钢球阀，KITZ UTH螺纹球阀，不锈钢球阀，萨孚流体控制
相关产品：不锈钢阀门，流体控制解决方案，不锈钢管件，卫生级阀门，卫生级设备，不锈钢气动阀门，不锈钢电动阀门，不锈钢工艺设备，进口阀门，进口设备，自控系统，智能控制设备，气动元件，电动执行机构，
供应商：萨孚流体控制（上海）有限公司
KITZ-UTH Screwed Ends Ball Valve
产品ID: KITZ-UTH
产品型号: UTH
►Body Material :A351 CF8 J92600 SCS13A
►TYPE 800 CAST STAINLESS STEEL,BALL VALVES,REDUCED BORE,SCREWED ENDS.,END TO END:KITZ STANDRAD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDRAD,TEST STANDARD:KITZ STANDARDSingle reduced bore, Split body design, Threaded ends Screwed body cap
TYPE 800 CAST STAINLESS STEEL,BALL VALVES,REDUCED BORE,SCREWED ENDS.,END TO END:KITZ STANDRAD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDRAD,TEST STANDARD:KITZ STANDARDSingle reduced bore, Split body design, Threaded ends Screwed body capTest Pressure (MPa) Inspection Standard: KITZ St'd-1 *=Periodic Test
Water Air
Shell 8.27*(1/2-2inch,15-50mm) 0.6(1/2-2inch,15-50mm)
Seat - 0.6(1/2-2inch,15-50mm)
Back Seat - -
Size Range
inch 1/2 3/4 1 11/4 11/2 2
mm 15 20 25 32 40 50
