产品型号： | R-1 |
| 产品品牌： | WIKA | |
| 产品价格： | 1000元/个 | |
| 所 在 地： | 北京 丰台区 | |
| 发布日期： | 2013-09-10 | |
 |
||
详细说明
接口尺寸： 7/16-20 UNF 90° Cold cone, 7/16-20 UNF female Schradercable, M12x1, Metri Pack（mm） 加工定制： 是
防护等级： IP65 测量范围： 0-60BAR（kPa）
类型： WIKA 制冷和暖通用压力变送器 R-1 UL TZW GOST CRN认证 变送器 防爆等级： IP65
型号： R-1 UL TZW GOST CRN 测量介质： 液体 气体
精度等级： 2 品牌： WIKA/威卡
输出信号： 4-20（mA） 电源电压： 10-30（V）
WIKA 制冷和暖通用压力变送器 R-1 UL TZW GOST CRN认证 变送器
Electronic
pressure measurement
Pressure transmitter for refrigeration and air-conditioning
applications
Model R-1, with hermetically welded thin film measuring cell

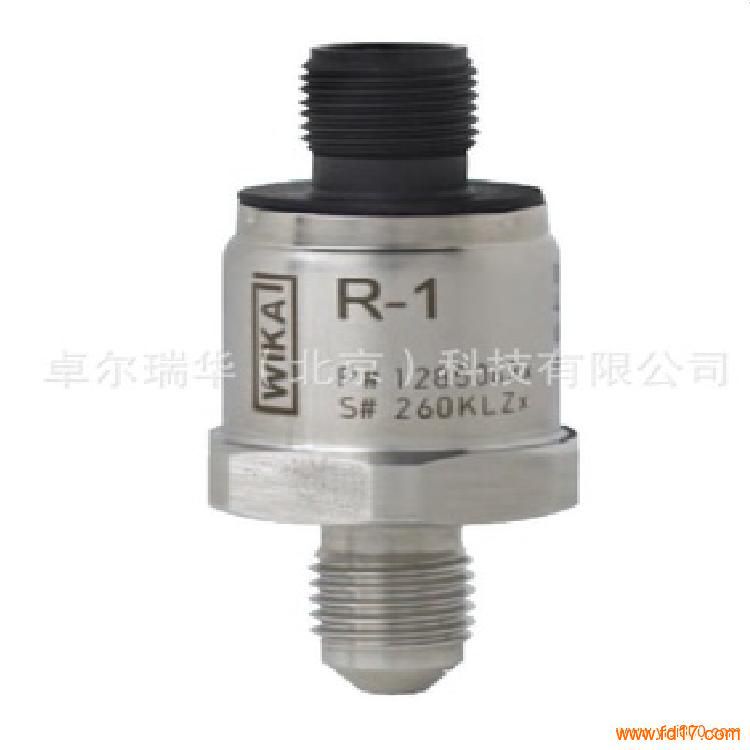

Pressure transmitter model R-1
Fig. left: with M12 x 1 circular connector
Fig. centre: with Metri-Pack series 150
Fig. right: with cable outlet
Applications
Compressors
Condensers
Special features
Wetted parts from stainless steel
Resistant to all common refrigerants
Special case design for the best possible condensation tightness
Private labelling possible
Description
Application area in refrigeration and air-conditioningtechnology
The model R-1 pressure transmitter has been optimally designed for the specific requirements of refrigeration and air-conditioning technology. Its monolithic construction dispenses with the need to use seals on the process side. This enables the model R-1 to be used with all typical refrigerants (e.g. Freon and Ammonia).
Excellent reliability
The hermetically-welded, dry, thin-film cell ensures long-term leak tightness. Moreover, these efficient cells, made with a sputtering technique, feature high long-term stability and a very high burst pressure.
Attractive price/performance ratio
The production on highly-flexible production lines, also offers a very attractive price-performance ratio with higher quantities.
