产品型号： | 8562B |
| 产品品牌： | 安捷伦 | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 东莞市 | |
| 发布日期： | 2019-11-23 | |
 |
||
详细说明

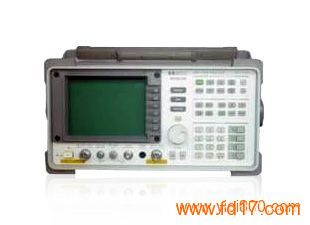

Agilent/HP 8562B频谱分析仪
仪器型号： 8562B
仪器品牌： Agilent/HP
技术指标： 9kHz 22GHz
The range of the Agilent 8562B, Used Spectrum Analyzer, can be extended to 325GHz with external mixers (not included). The HP 8562B, Spectrum Analyzer, is ruggedized to military specifications and can survive harsh field conditions.
The Agilent 8562B, Used Spectrum Analyzer, can perform a wide variaty of jobs from communication-system and component testing to radar and millimeter measurements.
Minimum resolution bandwidth of:
100Hz
Sweep time of:
50 ms to 100 s
Dynamic range of:
118 dB
AM and FM Demodulation
Displayed average noise ranges from:
-90 to -121 dBM
Video bandwidth of:
1Hz to 3MHz in 1/3/10 steps
Weighs 44 lbs
