产品型号： | 8561B |
| 产品品牌： | 安捷伦 | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 东莞市 | |
| 发布日期： | 2017-02-27 | |
 |
||
详细说明

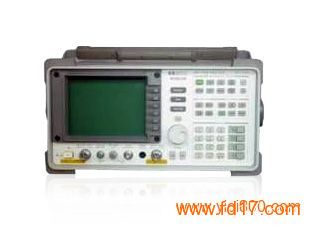

Agilent/HP 8561B 频谱分析仪
仪器型号： 8561B
仪器品牌： Agilent/HP
技术指标： 50Hz-6.5GHz
The Agilent 8561B, RF Spectrum Analyzer, features synthesized tuning, built-in frequency counter, digital bandwidths, AM/FM demodulator, & many optional features.
The Agilent 8561B, RF Programmable Spectrum Analyzer, offers excellent performance for RF design and service applications. The Agilent 8561B, Programmable Spectrum Analyzer, has a frequency range of 50Hz to 6.5GHz.
It has a synthesized tuning for drift-free, accurate measurements. Has a sensitivity of - 130 dBm and digital bandwidths of 10, 30, and 100 Hz. The Agilent 8561B, RF Programmable Spectrum Analyzer, meet the MIL - T- 28800C specifications for ruggedness.
Frequency Range:
50Hz to 6.5GHz
Sensitivity:
-130 dBm
Digital Bandwidths:
10, 30, 100Hz
Dynamic Range:
128 dB
Signal to distortion, harmonic:
81 dB(<2.9GHz)
110 dB(>2.9GHz)
Signal to distortion, intermodulation:
90 dB(< 2.9GHz)
92 dB(> 2.9GHz)
Low spurious response and average noise level(displayed)
Fully programmable(HP-IB)
