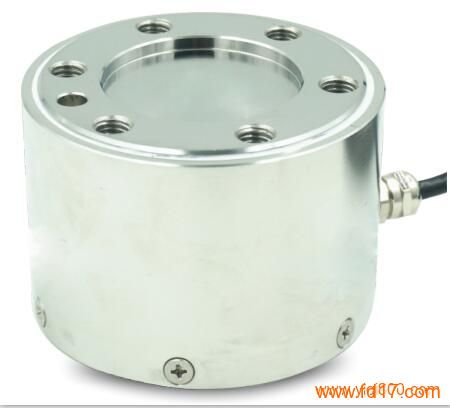

CL-TR3 三维力传感器
产品特点|Feature
Three dimensional force sensor
Senior alloy steel
Easy to install
Height of low rogidity
Suitable for industrial weighing systems, overload protection on robot heads, testing machine. etc
三维力传感器
优质合金钢材质
安装简便
高度低 刚性好
适用于工业称重系统，机器人手过载保护测式设备等
量程|Capacities
X:25/50N,Y：25/50N,Z:50/100N
客户可以根据自己需求定制量程。
技术参数|Specification
Rated Output 额定输出 1.0mv/v±1%
Zero Balance 零点平衡 ±1% of rated output
Creep After 30 Minutes 蠕变 ±0.2% of rated output
Nonlinearity 非线性 ±0.5% of rated output
Hysteresis 滞后 ±0.5% of rated output
Repeatability 重复性 ±0.2% of rated output
Temp. effect on output 灵敏度温漂 ≤0.05% of applied output/℃
Temp. Effect on zero 零点温漂 ≤0.05% of rated output/℃
Safe temp. Range 可用温度范围 -10℃ to+70℃
Temp.Compensated 温度补偿范围 -10℃ to+40℃
Safe Overload 安全载荷 150%
Input Impedance 输入阻抗 700 Ω±10Ω
Output Impedance 输出阻抗 700 Ω±10Ω
Insulation Resistance 绝缘阻抗 ≥5000MΩ(50V DC)
Rated Excitation 推荐激励电压 10V DC/AC
Protection Class 防护等级 IP67
Construction 电线 0-15t(3m)35-100t(12m)
type 型号说明 型号+量程+非标功能F(无非标则不需填写)
如：CL-TR3/35X50Y100Z
Cable Color Code 导线颜色 EXC:Blue(+E) Black(+E) XSIG:Gray(+S)
YSIG:Brown(+S) Yellow(-S) ZSIG:White(+S) Red(-S)
|
