产品型号： | HW-USBN-LA |
| 产品品牌： | Lattice | |
| 产品价格： | 1600元/台 | |
| 所 在 地： | 广东 深圳市 | |
| 发布日期： | 2012-06-16 | |
 |
||
详细说明
Lattice usb下载线
确保下载兼容性
2. 无需单独安装驱动，直接支持ispLever6.x/7.x/classic版本，ispVM各种版本
3. 支持lattice全系列FPGA，SC/SCM/XP/XP2/EC/ECP2/ECP2M/MachXO
4. 支持lattice全系列CPLD, 1000/2000/4000 系列
5. USB标准B型接口，使用标准USB连接线即可连接PC
6. USB供电，无需外部供电支持
7. 支持JTAG, internal FLASH，SPI FLASH等编程模式
8. 10针分离镀金插针式接口，可支持不同目标板接口

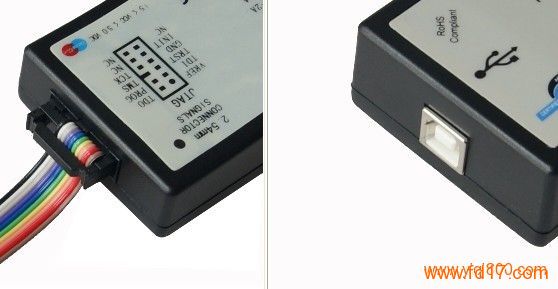

（下载线示意图）
Lattice ispDOWNLOAD® Cable products are the hardware connection for in-system programming of all Lattice devices. After completion of the logic design and creation of a programming file with the Lattice Diamond®, isp¬LEVER® Classic or PAC-Designer® software, the Lattice Diamond Programmer, or Lattice's ispVM™ System soft¬ware is used to control the programming of devices directly on the PC board. No additional components are required to program a device.
1. After you complete your logic design and create a programming file with the Lattice Diamond/ispLEVER develop¬ment tools, you can use ispVM™ System software or Diamond Programmer to program devices on your board. The ispVM System/Diamond Programmer software automatically generates the appropriate programming com¬mands, programming addresses and programming data based on information stored in the programming file and parameters you set in ispVM/Diamond Programmer. Programming signals are then generated from the USB or par¬allel port of a PC and directed through the ispDOWNLOAD Cable to the device. No additional components are required for programming.
2. 出货清单
1. 下载适配器1个
2. USB A-B型连接线1条
3. 75公分10针下载线1条
