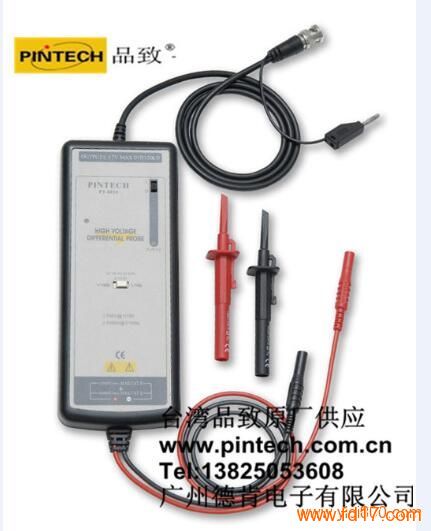

产品型号： | PT-8101/8110 |
| 产品品牌： | 台湾品致PINTECH | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 广州市 | |
| 发布日期： | 2018-06-07 | |
 |
||
详细说明
规格
频宽 100MHz
误差 ±2%
输入阻抗 4MΩ//7 p F each side ground
输出电压
-Swing(into 50 KΩ load) ±7V
-Offset(typical) ＜±5mV
-输入阻抗（typical） 50Ω
供应电源
-内置 4×AA cells or 6V DC/70m A mains adaptor regulated 9V DC/120m A mains adaptor
-外接 power leads
BNC长度 30cm
测试线长度 95cm
重量 500gms
尺寸(L×W×H) 202mm×83mm×38mm
型号 PT-8101 PT-8110
衰减比例 1:10/100 1:100/1000
共模互斥比CMRR(typical) -80dB@60Hz,-50d B@1MHz -80dB@60Hz,-50d B@1MHz
最大输入差动电压
(DC+ Peak AC) ±70V（DC+Peak AC）or 70V rms@1/10
±700V（DC+Peak AC）or 500V rms@1/10 ±140V（DC+Peak AC）or 140V rms@1/10
±1400V（DC+Peak AC）or 1000V rms@1/10
最大输入与地电位差
(DC+Peak AC) ±700V（DC+Peak AC）or 500V rms@1/10&1/100 ±1400V（DC+Peak AC）or1000V rms @1/100＆ 1/1000
共模互斥比(CMRR) ±1000V rms CAT Ⅲ@1/10&1/100 ±1400V（DC+Peak AC）or1000V rms CAT Ⅲ @1/100＆ 1/1000
Specifications
Bandwidth 100MHz
Accuracy ±2%
Input Impedance 4KΩ//7 p F each side ground
Output Voltage
-Swing(into 50 KΩ load) ±7V
-Offset(typical) ＜±5Mv
-Source Impedance（typical） 50Ω
Power Requirements
-Standard 4×AA cells or 6V DC/70m A mains adaptor regulated 9V DC/120m A mains adaptor
-Options power leads
Length of BNC Lead 90cm
Length of Input Leads 30cm
Weighr 500g
Dimension(L×W×H) 202mm×83mm×38mm
Specifications PT-8101 PT-8110
Attenuation Ratio 1:10/100 1:100/1000
CMRR(typical) -85dB@50Hz,-55dB@1MHz -80dB@60Hz,-50d B@1MHz
Differential Input Voltage
(DC+ Peak AC) ±70V@1/10
±700V@1/100 ±140@1/100
±1400@1/1000
Common Mode Voltage
(DC+Peak AC) ±700V@1/10 ＆ 1/100 ±1400V@1/100＆ 1/1000
Absolute Max .Input
(Each side to ground) 1000V rms CAT Ⅲ 1000V rms CAT Ⅲ
Features:
•Bandwidth up to 100MHz
•Up to ±1400V(DC+Peak AC) Differential and Common Mode
•Safety Certified
Applicstions:
•Switching Power Supply Design
•Motor Drive Design
•Electronic Ballast Design
•CRT Display Design
