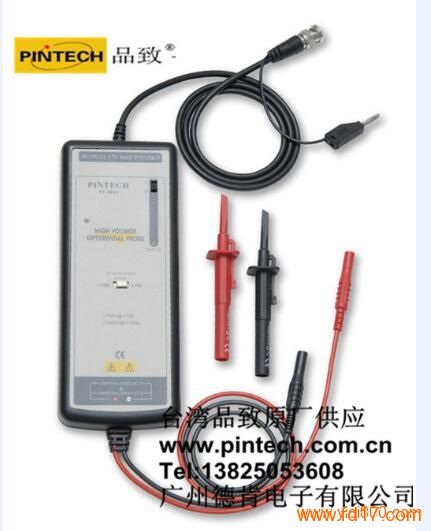

产品型号： | PT-8001/8002 |
| 产品品牌： | 台湾品致PINTECH | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 广州市 | |
| 发布日期： | 2018-06-07 | |
 |
||
详细说明
规格
带宽 25MHz
误差 ±2%
输入阻抗 4MΩ//5.5 p F each side ground
输出电压
-Swing(into 50 KΩ load) ±7V
-Offset(typical) ＜±5mV
杂讯 0.7mV rms
供应电源
-内置 4×AA cells or 6V DC/60m A mains adaptor or regulated 9V DC/40m A mains adaptor
-外接 power leads
重量 400g (probe and PVC jacket)
尺寸 (L×W×H) 170mm×63mm×21mm
型号 PT-8001 PT-8002
衰减比例 1:10/100 1:20/200
共模互斥比CMRR(typical) -86dB@50Hz,-66dB@20MHz -80dB@50Hz,-60dB@20kHz
最大输入差分电压
(DC+ Peak AC) ±70V@1/10
±700V@1/100 ±140@1/20
±1400@1/200
最大输入与地电位差
(DC+Peak AC) ±700V@1/10 ＆ 1/100 ±1400V@1/20 ＆ 1/200
共模互斥比(CMRR) 1000V rms CAT Ⅲ 1000V rms CAT Ⅲ
Specifications
Bandwidth 25MHz
Accuracy ±2%
Input Impedance 4KΩ//5.5 p F each side ground
Output Voltage
-Swing(into 50 KΩ load) ±7V
-Offset(typical) ＜±5mV
-Noise（typical） 0.7mV rms
Power Requirements
-Standard 4×AA cells or 6V DC/60m A mains adaptor or regulated 9V DC/40m A mains adaptor
-Options power leads
Weighr 400g (probe and PVC jacket)
Dimension(L×W×H) 170mm×63mm×21mm
Specifications PT-8001 PT-8002
Attenuation Ratio 1:10/100 1:20/200
CMRR(typical) -86dB@50Hz,-66dB@20MHz -80dB@50Hz,-60dB@20kHz
Differential Input Voltage
(DC+ Peak AC) ±70V@1/10
±700V@1/100 ±140@1/20
±1400@1/200
Common Mode Voltage
(DC+Peak AC) ±700V@1/10 ＆ 1/100 ±1400V@1/20 ＆ 1/200
Absolute Max .Input
(Each side to ground) 1000V rms CAT Ⅲ 1000V rms CAT Ⅲ
Features:
•Up to ±1400V(DC+Peak AC) Differential and Common Mode
•Safety Certified
•Economical Cost
Applicstions:
•Switching Power Supply Design
•Motor Drive Design
•Electronic Ballast Design
•CRT Display Design
Specifications
Bandwidth 25MHz
Accuracy ±2%
Input Impedance 4KΩ//5.5 p F each side ground
Output Voltage
-Swing(into 50 KΩ load) ±7V
-Offset(typical) ＜±5mV
-Noise（typical） 0.7mV rms
Power Requirements
-Standard 4×AA cells or 6V DC/60m A mains adaptor or regulated 9V DC/40m A mains adaptor
-Options power leads
Weighr 400g (probe and PVC jacket)
Dimension(L×W×H) 170mm×63mm×21mm
Specifications PT-8001 PT-8002
Attenuation Ratio 1:10/100 1:20/200
CMRR(typical) -86dB@50Hz,-66dB@20MHz -80dB@50Hz,-60dB@20kHz
Differential Input Voltage
(DC+ Peak AC) ±70V@1/10
±700V@1/100 ±140@1/20
±1400@1/200
Common Mode Voltage
(DC+Peak AC) ±700V@1/10 ＆ 1/100 ±1400V@1/20 ＆ 1/200
Absolute Max .Input
(Each side to ground) 1000V rms CAT Ⅲ 1000V rms CAT Ⅲ
Features:
•Up to ±1400V(DC+Peak AC) Differential and Common Mode
•Safety Certified
•Economical Cost
Applicstions:
•Switching Power Supply Design
•Motor Drive Design
•Electronic Ballast Design
•CRT Display Design
