产品型号： | HDO4104 |
| 产品品牌： | 力科 | |
| 产品价格： | 183680元/台 | |
| 所 在 地： | 湖北 武汉市 | |
| 发布日期： | 2014-06-16 | |
 |
||
详细说明
技术参数:

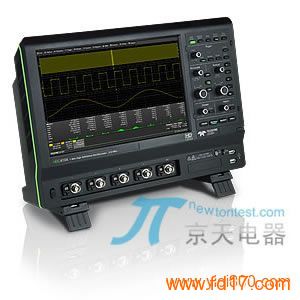

1GHz, 采样率2.5 GS/s, 4通道, 存储深度12.5 Mpts/Ch 12-bit精度 HD Oscilloscope with 12.1" WXGA 彩色显示屏
性能特点:
Vertical System
Bandwidth 1 GHz
Rise time 350 ps
Input Channels 4
Bandwidth Limiters 20 MHz, 200 MHz
Input Impedance 1 MΩ ±2.0% || 15 pF, 50 Ω ±2.0%
Input Coupling AC, DC, GND
Maximum Input Voltage 1 MΩ: 400 V max (DC + Peak AC ≤ 10 Khz), 50 Ω: 5 VRMS
Vertical Resolution 12-bits
Sensitivity 1 MΩ: 1 mV/div - 10 V/div
50 Ω: 1mV/div - 1 V/div
DC Gain Accuracy ±(0.5%) Full Scale, offset at 0 V
Offset Range 50Ω
+/-1.6V: 1mV/div-4.95mV/div
+/-4V: 5mV/div-9.9mV/div
+/-8V: 10mV/div-19.8mV/div
+/-10V: 20mV/div-1V/div
1MΩ
+/-1.6V: 1mV/div-4.95mV/div
+/-4V: 5mV/div-9.9mV/div
+/-8V: 10mV/div-19.8mV/div
+/-16V: 20mV/div-100mV/div
+/-80V: 102mV/div-198mV/div
+/-160V: 200mV/div-1V/div
+/-400V: 1.02V/div-10V/div
Horizontal System
Time/Division Range 20 ps/div - 10000 s/div
Clock Accuracy ±2.5ppm for 5 to 40C + 1.0ppm/year from calibration
Trigger and Interpolator Jitter 3.5 ps (rms)
Acquisition System
Single-Shot Sample Rate/Ch 2.5 GS/s
Equivalent Sample Rate 125 GS/s
Memory 25 Mpts/Ch on 2 Ch
12.5 Mpts/Ch on 4 Ch
Acquisition Modes
Averaging Up to 1,000,000
Peak Detect na
Interpolation Linear, Sin x/x
Enhanced Resolution Up to 15 bits
Sequence Mode Up to 10,000 segments
Triggering System
Modes Normal, Auto, Single, Stop
Sources Ch 1 - Ch 4, EXT, EXT/10, AC Line
Coupling Mode AC, DC, LF Rej, HF Rej
Pre-trigger Delay 0-100% of full scale
Post-trigger Delay 0-10,000 Divisions
Hold-off by Time or Events 2ns up to 20s
Internal Trigger Range ±4.1 Divisions
Trigger Sensitivity 0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 500 MHz
2.0 divisions: 1 GHz
External Trigger Sensitivity 0.9 division: 10 MHz
1.0 divisions: 200 MHz
1.5 divisions: 500 MHz
2.0 divisions: 1 GHz
External Trigger Input Range Ext: ±0.4 V, EXT/10: ±4.0 V
Display
Type Color Touch Screen 12.1" TFT-LCD
Resolution 1280 x 800
Grid Styles YT, XY
Trigger Types
Standard Triggers Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified
Optional Advanced Triggers na
Optional Serial Data Triggers I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, Audio (I2S, LJ, RJ, TDM), USB, USB-HSIC, MIPI D-PHY, DigRF3G
Internal Storage
Waveform Storage 4 memory waveforms plus internal HDD
Setup Storage 6 setups
Math
Number of Math Traces 2
Standard Math Functions Add, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root, Trend, Zoom
Optional Math Functions na
Measurements
Number of Measurements Displayed 8
Measurement Parameters Ampltidue, Area, Base, Delay, Delta Period @ Level, Delta Time @ Level, Duty Cycle, Duty @ Level, Edge @ Level, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Frequency @ Level, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Period, Period @ Level, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Time @ Level, Top, Width+, Width-
Probes
Probes Qty. (4) ÷10 Passive Probes
Scale Factors Automatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000
Variable: (÷1x10-6 - ÷10000)
Calibration Output 1 kHz square wave, 1.0 Vp-p,
output to probe hook
Power Requirements
Voltage 90 - 264 VAC, 45 HZ - 66 Hz
90 - 132 VAC, 380 HZ - 420 Hz
Max. Power Consumption 330 VA
