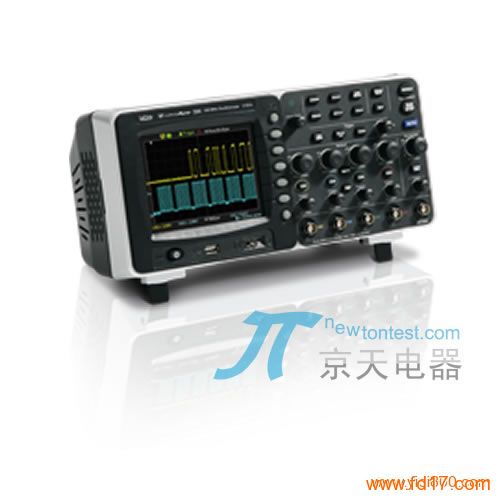

产品型号： | WaveAce 212 |
| 产品品牌： | 美国力科 | |
| 产品价格： | 10元/台 | |
| 所 在 地： | 湖北 武汉市 | |
| 发布日期： | 2013-03-28 | |
 |
||
详细说明
简要说明：
宽带100 MHz, 2 通道, 实时取样率1 GS/s, 存储每通道9 kpts (通道复用时存储每通道18 kpts) 5.7" 彩色屏
技术参数：
Vertical System
Bandwidth 100 MHz
Rise time 3.5 ns
Input Channels 2
Bandwidth Limiters 20 MHz
Input Impedance 1 MΩ ± 2% || 13 pF ± 3 pF
Input Coupling AC, DC, GND
Maximum Input Voltage ± 400 Vpk
Channel-Channel Isolation ≥ 100:1 at 50 MHz
Vertical Resolution 8 bits
Sensitivity 2 mV/div - 5 V/div
DC Gain Accuracy ±3%: 5 mV/div - 5 V/div (fixed gain ranges)
±4%: 2mV/div and variable gain ranges
Offset Range ±2 V: 2mV/div - 100 mV/div
±40V: 102 mV/div - 5 V/div
Horizontal System
Time/Division Range 2.5 ns/div - 50 s/div
Clock Accuracy 100 ppm
Trigger and Interpolator Jitter .5 ns (pk-pk)
Acquisition System
Single-Shot Sample Rate/Ch 2 GS/s on 1 Ch 1 GS/s on 2 Ch
Equivalent Sample Rate 50 GS/s
Memory 18 kpts/Ch on 1 Ch 9 kpts/ch on 2 Ch
Acquisition Processing
Averaging Selectable Number of Sweeps: 4, 16, 32, 64, 128, 256
Peak Detect 2.5 ns
Enhanced Resolution (ERES) na
Interpolation Linear, Sin x/x
Triggering System
Modes Normal, Auto, Single, Stop
Sources Ch 1 - Ch 2, EXT, EXT/5, AC Line
Coupling Mode AC, DC, LF Rej, HF Rej,
Pre-trigger Delay memory/(2 * sample rate)
Post-trigger Delay 260 Divisions
Hold-off by Time 100 ns - 1.5 s
Internal Trigger Range ±6 divisions from center
Trigger Sensitivity 1 division: DC - 10 MHz
1.5 divisions: 10 MHz - 100 MHz
External Trigger Sensitivity Ext: 200 mVpp from DC to 10 MHz
300 mVpp from 10 MHz to 100 MHz
Ext/5: 1Vpp from DC to 10 MHz
1.5 mVpp from 10 MHz to 100 MHz
External Trigger Input Range Ext: ±1.2 V, EXT/5: ±6 V
Display
Type Color 5.7" TFT-LCD
Resolution QVGA; 320 x 234 pixels
Grid Styles YT (12 horizontal divisions), XY
Trigger Types
Optional Advanced Triggers na
Optional Serial Data Triggers na
Internal Storage
Waveform Storage 20 waveforms and 2 reference waveforms
Setup Storage 20 setups
Math
Standard Math Functions Add, Subtract, Multiply, Divide, FFT
Optional Math Functions na
Measurements
Measurement Parameters Amplitude, Average, Base, Burst Width, Cyclical RMS, +Duty Cycle, -Duty Cycle, Fall Time, Frequency, Max, Mean, Min, Overshoot, Peak-Peak, Period, Phase, Rise Time, RMS, Top, +Width, -Width, First Rising-Rising, First Rising-Falling, First Falling-Rising, First Falling-Falling, Last Rising-Rising, Last Rising-Falling, Last Falling-Rising, Last Falling-Falling
Probes
Probes Qty. (2) ÷10/1 Passive Probes
Scale Factors Manual: ÷1, ÷10, ÷100, ÷1000
Calibration Output 1 kHz square wave, 3Vp-p (typical), output to probe hook
Interface
GPIB Port (optional) na
USB (Device) 1
Ethernet Port na
USB (Host) 1
Serial Port 1
Power Requirements
Voltage 100 - 240 VAC, 45 Hz to 440 Hz
Max. Power Consumption 50 VA
Environmental and Safety
Temperature (Operating) 10 °C to 40 °C
Temperature (Non-Operating) -20 °C to 60 °C
Humidity (Operating) 85% RH, 40 °C
Humidity (Non-Operating) 85% RH, 65 °C
Altitude (Operating) 3000 m
Altitude (Non-Operating) 15,266 m
Physical Dimensions
Dimensions (HWD) 154 mm x 305 mm x 133 mm
(6" x 12" x 5.25")
Weight 2.3 kg (5 lbs)
