产品型号： | WaveSurfer 64MXs-B |
| 产品品牌： | 美国力科 | |
| 产品价格： | 10元/台 | |
| 所 在 地： | 湖北 武汉市 | |
| 发布日期： | 2013-03-28 | |
 |
||
详细说明
简要说明：

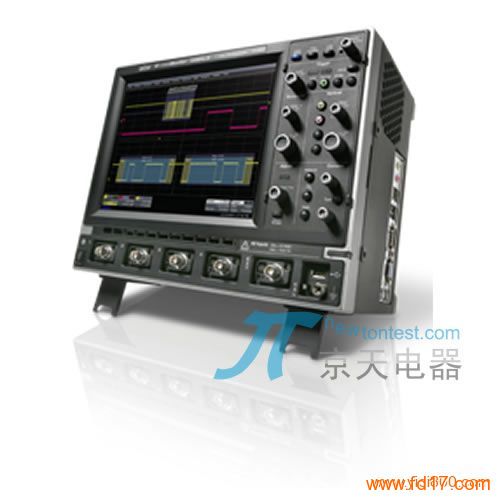

宽带600 MHz, 4 模拟通道, 采样率5GS/s, 存储每通道16Mpts 10.4" TFT-LCD触摸屏
技术参数：
Vertical System
Bandwidth 600 MHz
Rise time 500 ps
Input Channels 4
Bandwidth Limiters 20 MHz, 200 MHz
Input Impedance 1 MΩ ± 1.0% || 16 pF ± 2 pF, 50 Ω ± 1.0%
Input Coupling AC, DC, GND
Maximum Input Voltage 1 MΩ: ± 250 Vpk, 50 Ω: 5 VRMS
Channel-Channel Isolation ≥ 52 dB at 100 MHz
≥ 30 dB at 600 MHz
Vertical Resolution 8 bits
Sensitivity 1 MΩ: 2 mV/div - 10 V/div
50 Ω: 2 mV/div - 1 V/div
DC Gain Accuracy ±1.5%
Offset Range ±1 V: 2 mV/div - 99 mV/div
±10 V: 100 mV/div - 1.0 V/div
±100 V: 1.02 V/div - 10 V/div
Horizontal System
Time/Division Range 200 ps/div - 1000 s/div
Clock Accuracy 5 ppm
Trigger and Interpolator Jitter 3 ps (rms)
Acquisition System
Single-Shot Sample Rate/Ch 10 GS/s on 2 Ch
5 GS/s on 4 Ch
Equivalent Sample Rate 50 GS/s
Memory 25 Mpts/Ch on 2 Ch
12.5 Mpts/Ch on 4 Ch
Acquisition Processing
Averaging Up to 1,000,000
Peak Detect na
Enhanced Resolution (ERES) Up to 11 bits
Interpolation Linear, Sin x/x
Sequence Mode Up to 10,000 segments
Triggering System
Modes Normal, Auto, Single, Stop
Sources Ch 1 - Ch 4, EXT, EXT/10, AC Line
Coupling Mode AC, DC, LF Rej, HF Rej,
Pre-trigger Delay 0 - 100% Full Scale
Post-trigger Delay 0 - 10,000 Divisions
Trigger Sensitivity 1.0 division: 200 MHz
2.0 division: 600 MHz
External Trigger Sensitivity Ext: 50 mV from DC to 10 MHz
200 mV from 10 MHz to 600 MHz
Ext/10: 0.5 V from DC to 10 MHz
2.0 mV from 10 MHz to 600 MHz
External Trigger Input Range Ext: ±0.4 V, EXT/10: ±4.0 V
Display
Type Color Touch Screen 10.4" TFT-LCD
Resolution SVGA: 800 x 600
Grid Styles YT, XY
Trigger Types
Standard Triggers Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified
Optional Advanced Triggers na
Optional Serial Data Triggers I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, MIL-STD-1553, ARINC 429, Audio (I2S, LJ, RJ, TDM), USB, MIPI D-PHY, DigRF3G
Internal Storage
Waveform Storage 4 memory waveforms plus internal HDD
Setup Storage 6 setups
Math
Standard Math Functions Add, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root
Optional Math Functions na
Measurements
Measurement Parameters Ampltidue, Area, Base, Delay, Duty Cycle, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Top, Width+, Width-
Probes
Probes Qty. (4) ÷10 Passive Probes
Scale Factors Automatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000
Variable: (÷1x10-6 - ÷10000)
Calibration Output 1 kHz square wave, 1.0 Vp-p, output to probe hook
Interface
GPIB Port (optional) 1 (optional)
USB (Device) 0
Ethernet Port 1
USB (Host) 5
Serial Port 1
Power Requirements
Voltage 90 - 264 VAC, 47 HZ - 63 Hz
90 - 132 VAC, 380 HZ - 420 Hz
Max. Power Consumption 340 VA
Environmental and Safety
Temperature (Operating) 5 °C to 40 °C
Temperature (Non-Operating) -20 °C to 60 °C
Humidity (Operating) 80% RH, 31 °C
50% RH, 40 °C
Humidity (Non-Operating) 95% RH
Altitude (Operating) 2000 m
Altitude (Non-Operating) 12,192 m
Physical Dimensions
Dimensions (HWD) 260 mm x 340 mm x 152 mm
(10.25" x 13.4" x 6")
Weight 7.26 kg. (16.0 lbs.)
