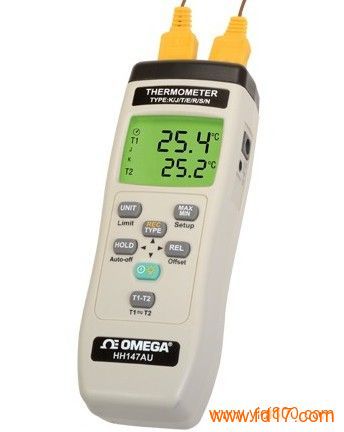

产品型号： | HH147AU |
| 产品品牌： | Omega | |
| 产品价格： | 面议 | |
| 所 在 地： | 上海 浦东新区 | |
| 发布日期： | 2018-01-30 | |
 |
||
详细说明
Specifications
Accuracy is specified for ambient temperatures between 18 to 28°C (64 to 82°F).
Thermocouple Ranges:
K Type: -200 to 1372°C (-328 to 2501°F)
J Type: -210 to 1200°C (-346 to 2192°F)
T Type: -250 to 400°C (-418 to 752°F)
E Type: -210 to 1000°C (-346 to 1832°F)
R/S Type: 0 to 1767°C (32 to 3212°F)
N Type: -150 to 1300°C (-238 to 2372°F)
Resolution:
K / J / T / E / N Type: 0.1°
R/S Type: 1°
Accuracy:
K / J / T / E / N Type: ±(0.05% rdg, 0.7°C/1.4°F) -250 to -100°C (-418 to -148°F) ±(0.05% rdg, 0.6°C/1°F) -100 to 1372°C (-148 to 2501°F)
R/S Type: ±(0.05% rdg, 2°C/4°F) 0 to 1767°C (32 to 3212°F)
Temperature Coefficient: 0.01% 0.03°C of read value/°C (0.06°F/°F) outside 18 to 28°C (64 to 82°F) specified range [Under -100°C (-148°F): 0.04% of read value added to K, J, T, E, and 0.08% read value added to N]
Temperature Scale: ITS-90
Battery Life: Approximately 100 hours
Operation and Storage Temperature and Humidity: 0 to 50°C (32 to 122°F), < 80% RH
Dimensions: 155 L x 56 W x 40 D mm (6.10 x 2.20 x 1.57")
Weight: Approximately 170 g (0.37 lb)
USB PC Serial Interface: Windows® XP/7/8/10
* The above specifications do not include error of thermocouple
