产品型号： | RX-200 |
| 产品品牌： | 源兴 | |
| 产品价格： | 面议 | |
| 所 在 地： | 福建 厦门市 | |
| 发布日期： | 2016-08-05 | |
 |
||
详细说明

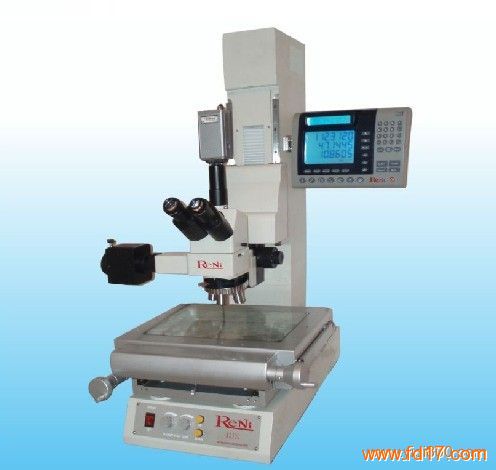

型号：RX-200
特点：
Features:
应用:
Applications:
LCD液晶 导电粒子 彩色滤光片手机屏幕 FPD模组半导体晶圆片 FPC PCB IC封装光盘CD 图像传感器CCD CMOS PDA
LCD conducting particle color filter mobile phone screen, FPD module semiconductor wafers, FPC PCB IC CD package, image sensor CCD
CMOS PDA.
光源:
Illumination:
采用12V 50W 高亮度卤素灯落射和10W LED透射照明装置
It adopts 12V 50W high-brightness halogen lamp reflect illumination and 10W LED contour illumination unit.
物镜:
Objective:
RENI公司特有平场复消色差超高工作距离物镜、大大提升成像效果及工件操作空间
RENI company’s Plan Achromatic Objectives with over-length working distance, which largely improves the image effect and work-piece operating space.
偏光
Polarized Light:
主机内含有可调节起偏镜及偏光装置
There is adjustable polarizer and polarizing unit inside of machine
调焦
Focusing:
特有粗调电动升降装置，大大提高测量效率、微调焦装置,微调最小每格0.2UM.
Special coarse focusing electric lifting unit improves largely measuring efficiency, fine focusing unit is with minimum division: 2μm.
载物台
Stage:
大行程8英寸平台、配置“RENI”公司0.5微米高精度光栅尺及精密导轨、保证平台长时间使用精度稳定
Large travel 8〞stage is equipped with RENI company’s 0.5um high-accurate linear scales and precise guides, which ensures a stable accuracy after a long-term use.
测量软件
Measuring Software
强大的RX-J金相测量软件、快速处理大量测量数据
Functional RX-J metallurgical measuring software can quickly deal with large number of measurement data
标标准配置清单 Standard Accessories List
