产品型号： | LFM - H 150 - 600 kN |
| 产品品牌： | WB | |
| 产品价格： | 面议 | |
| 所 在 地： | 陕西 西安市 | |
| 发布日期： | 2009-05-27 | |
 |
||
详细说明

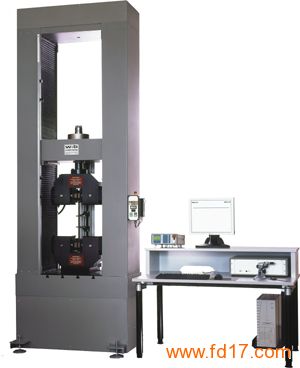

Series LFM - H 150 - 600 kN
The LFM-H high-capacity testing machines are mainly used for testing of metals, fastener or composites and also in research and development where specimen size and strength require higher force capacities.
Electromechanical High-Capacity Testing Machines
The Series LFM-H testing machines often are the perfect solution for typical applications including testing of large metal specimens, fasteners, composites, cables, forgings, welded joints, geotextiles, polymers and reinforced plastics, civil structure materials, adhesives, components or finished goods. The machines with its pre-loaded, backlash-free ball screws and heavy duty bearings with additional robust guidance columns features accurate crosshead alignment and are suitable not only for tension or compression test but also through zero testing. The backlash-free ball screws are digital controlled by a high responsive AC brush-less servomotor with high start up torque for faster starts and stops and best and most accurate control over a large speed range at a extremely low noise level. These load frames are rigid 4-column constructions, providing superior axial and lateral stiffness. The machine is equipped with multi-position limit detectors for the best protection of operator, test sample and machine. The load frame is constructed in the way that the upper crosshead is driven so that the lower base platen remains and allows an ergonomic working in seated or standing position at pleasant working height. The lower base platen is also available with T-slots suitable to fix components, specimens, manufactured assemblies or other accessories. Optional are 2nd and 3rd test chambers and operators safety protection when brittle materials are tested.
Applications:
Series LFM - H with Large T-Slots Base Platen
Series LFM - H with 3 Test Chambers
Series LFM - H with High-Temperature Installation
