产品型号： | LFM - L 0.5 - 20 kN |
| 产品品牌： | WB | |
| 产品价格： | 面议 | |
| 所 在 地： | 陕西 西安市 | |
| 发布日期： | 2025-05-23 | |
 |
||
详细说明

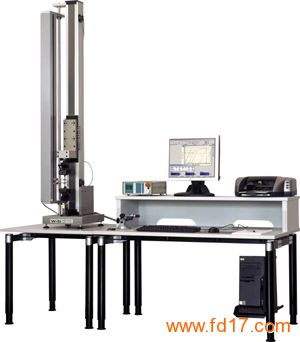

Series LFM - L 0.5 - 20 kN
Ergonomical table-top Testing Machines for tensile, compression, bending, sheer or peel but also strain and other more advanced tests on a wide range of different materials. It combines high performance with compact dimensions. These machines offer force, displacement or deformation closed loop testing.
Electromechanical Low-Capacity Testing Machines
The LFM-L Series of Universal Testing Machines are designed for testing of a variety of different materials, specimens or components where load requirements are low. This series is compatible with a wide range of accessories, grips and fixtures covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness. The linear module with multiple guided, backlash-free ball screw assembly with anodised aluminium frame combines high performance with compact dimensions. Available also as horizontal machines for testing of extra long specimen in ergonomical working height.
The LFM load frames are rigid constructed, providing superior axial and lateral stiffness. The two linear modules with anodised aluminium frame are precise systems that combine high performance with compact dimensions. The linear modules are protected by corrosion-resistant steel strips which are easy to clean and also resistant against high temperature.
Applications:
LFM - L with Horizontal Test Space
LFM - L with Large Base Platen
LFM - L for Testing of Construction Elements
consisting of Shape Memory Alloys (SMA)
LFM-L 20 kN for Steel Testing
