产品型号： | |
| 产品品牌： | ||
| 产品价格： | 面议 | |
| 所 在 地： | 上海 长宁区 | |
| 发布日期： | 2017-07-06 | |
 |
||
详细说明
212.20-E-BBG-GD-UZAGZCZZ-Z3T
831.11Z-AP-Z E

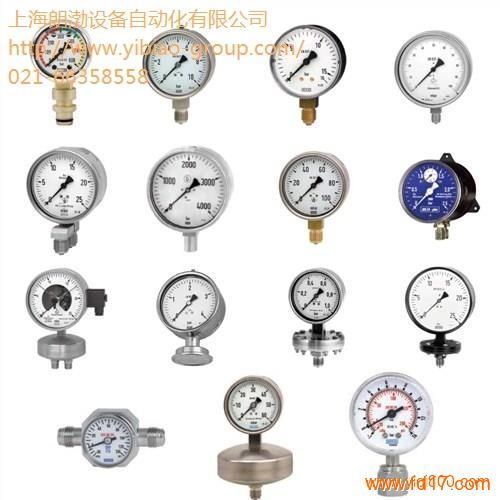

Bourdon Tube, Pressure Gauges Industry Series
Model: 212.20
Specifications according to data sheet: PM 02.01
Measuring system: copper alloy
Case: stainless steel
Bezel ring: cam ring (bayonet type), stainless steel
Accuracy class: class 1.0
Nominal size: 100 mm
Unit: bar
Range: 0 bar...4 bar
Process connection: G 1/2 B
Connector position: lower mount
Movement: copper alloy
Window: flat instrument glass
Pointer: standard black
Additional order details: second scale:0~0.4MPa
with integrated Alarm Contact,
Inductiv Sensor Series Model 831
Specifications according to data sheet: AE 08.01
first switch operation: makes (1)
second switch operation: makes (1)
Contact design: Standard
Electrical connection: plug sidewise
