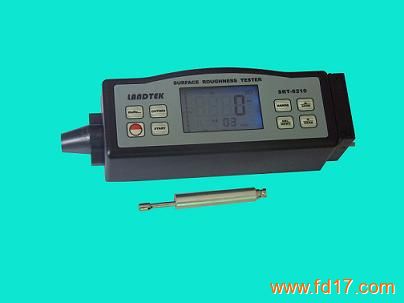

Model:SRT-6210
1.FEATURES
This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion
2．SPECIFICATIONS
Display： 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz, Rq, Rt
Measuring Range
Ra, Rq: 0.005-16.00um/0.020-629.9uinch
Rz,Rt: 0.020-160.0um/0.078-6299uinch
Accuracy: Not more than ?0%
Fluctuation of display value: Not more than 6%
Sensor :
Test Principle: Inductance type
Radius of Probe Pin: 5um
Material of Probe Pin: Diamond
Dynamo-measurement of Probe: 4mN(0.4gf)
Probe Angle: 90?
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke: 17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
Driving speed:
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
Profile digital filter
Filtered Profile: RC
Filtered Profile: PC-RC
Filtered Profile: Gauss
Non-Filtered Profile: D-P
Resolution : .001μm if reading ＜10μm
0.01μm if 10μm≤reading＜100μm
0.1μm if reading ≥100μm
Evaluation length : 5 cut-off
Power Li-ion battery: rechargeable
Operating conditions: Temp. 0~50℃
Humidity <80%
Size：140x57x48 mm (5.5x2.2x1.9 inch)
Weight: about 420 g
