产品型号： | AM-4836C |
| 产品品牌： | ||
| 产品价格： | 面议 | |
| 所 在 地： | 广东 广州市 | |
| 发布日期： | 2009-05-15 | |
 |
||
详细说明
1.APPLICATION
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department

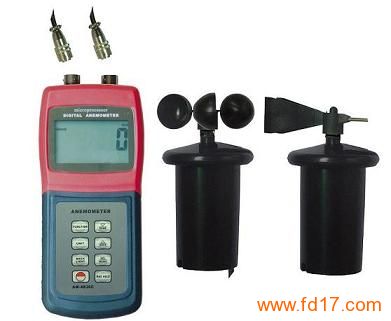

Model:AM4836C
2. SPECIFICATIONS
2.1 General Specifications
Display 0.5" (13 mm) 4-digit LCD
Measurement units Air Velocity: m/s, km/h, ft/min, knots
Air Flow: CMM (m3/min);
CFM (ft3/min)
Beaufort Scale: Force
Wave Height: m
Direction: °from the North direction
Temp: °C & °F
Data hold Maximum Value
Data memorized 24 groups
Sampling rate reading per second approx
Sensors Air velocity/flow sensor:
3-cup probe
Direction probe: Low friction probe
Temperature sensor:
Precision thermistor
Automatic Power off 0-9 minutes set by users
Data Output RS 232 C serial interface
Operating Temperature 32°F to 122°F (0°C to 50°C)
Operating Humidity Max. 80% RH
Power Supply 4x1.5AAA size
Weight 260g (0.57lb) including batteries & probe
Dimensions Main instrument: 156x67x28mm
(6.1x2.6x1.1")
Velocity sensor: 65x65x115mm
Direction sensor: 86x69x115mm
Optional Accessories Cable+Software for RS232C or USB
