产品型号： | TM-8812 |
| 产品品牌： | ||
| 产品价格： | 面议 | |
| 所 在 地： | 广东 广州市 | |
| 发布日期： | 2009-05-14 | |
 |
||
详细说明
Application: Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

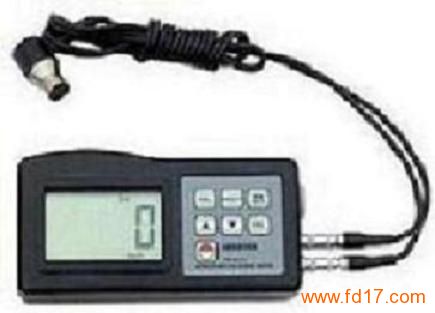

Model: TM8812
Measuring range (metric/imperial): 1.2-225mm,0.05-9inch
Operating principle: ULTROSONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Resolution: 0.1mm
Accuracy: ±(0.5%n+0.1)
RS232C interface: with RS232C
Power supply: 4x1.5V AAA (UM-4)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32?-104?),≤90%RH
Dimensions: 120x62x30mm
weight: 164g(not including battery)
Optional accessories：Cable&software for RS-232C.
