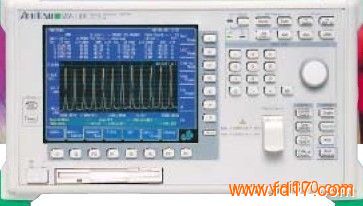

产品型号： | MS9710B/C |
| 产品品牌： | Anritsu安立 | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 深圳市 | |
| 发布日期： | 2013-10-16 | |
 |
||
详细说明
MS9710B
MS9710C MS9710C-15
Main features C-band
Up to 100 GHz channel spacing C+L Band
Up to 50 GHz channel spacing
Measurement range 600-1750 nm
l accuracy 50pm(1530-1570nm) 20pm(1530-1570nm)
50pm (1520-1600nm) 20pm
(1520-1620nm)
MAX. RBW 70 pm 50 pm
RBW accuracy
(0.2 nm) <3% (1530-1570nm) <3% (1530-1570nm) <3% (1520-1620nm)
Level flatness +/-0.1dB
(1530-1570nm) +/-0.1dB
(1530-1570nm)
+/-0.3dB
(1520-1620nm) +/-0.1dB
(1520-1620nm)
PDL +/- 0.05dB (C-band) +/- 0.05dB (C +L band)
Level linearity +/- 0.05dB (C-band) +/- 0.05dB (C +L band)
