产品型号： | JCG12864A32-04 |
| 产品品牌： | JHD | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 深圳市 | |
| 发布日期： | 2010-11-23 | |
 |
||
详细说明

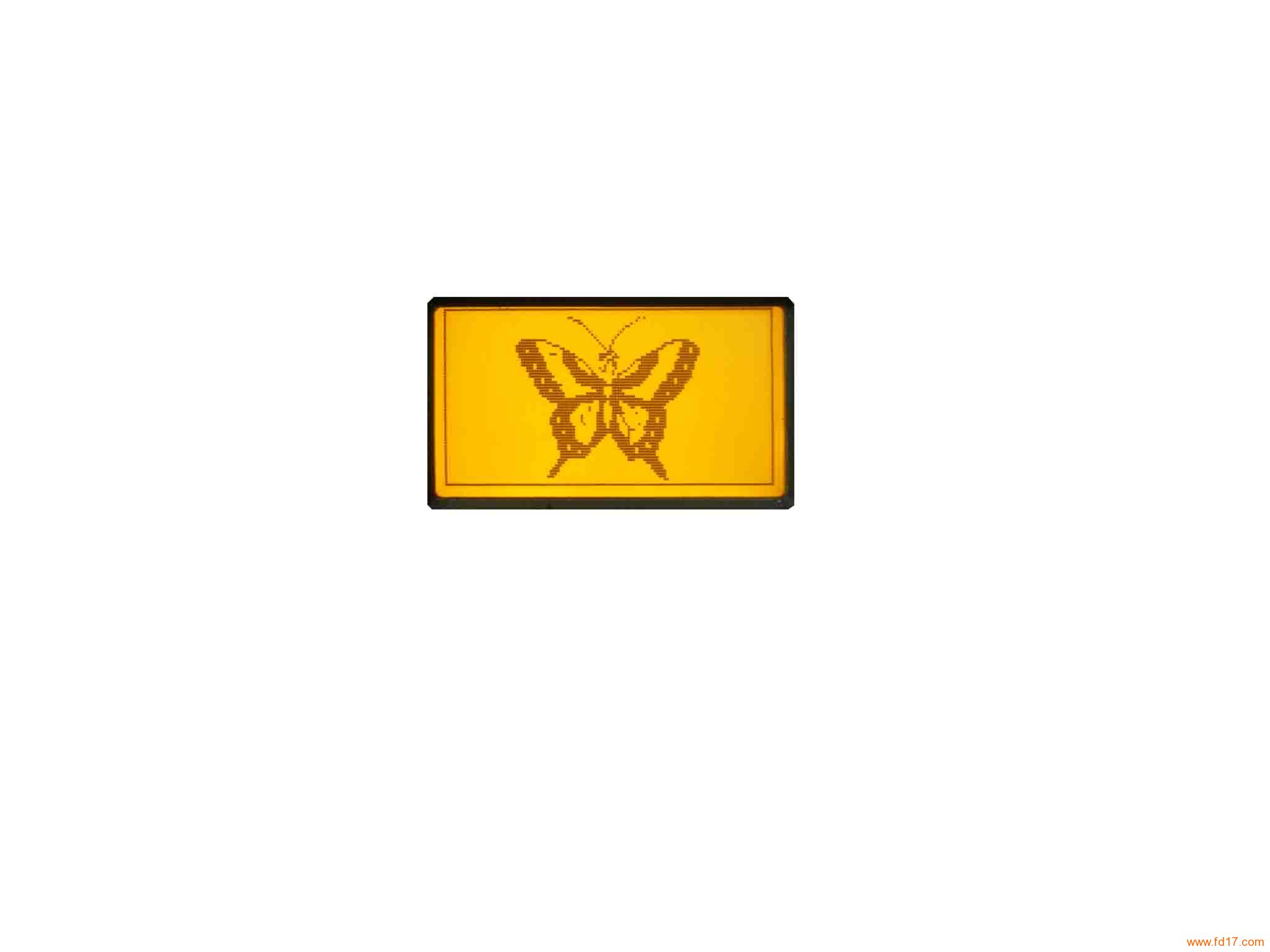

128 x 64 Dots FSTN Positive Transflective Dot Matrix LCD Graphic Module.
Viewing Angle: 6 O’clock direction.
Driving duty: 1/65 Duty, 1/9 bias.
‘Samsung’ S6B0724A01-B0CY LCD Controller &Driver or equivalent.
Chip-On-Glass (COG).
High-speed 8-bit Parallel bi-directional interface with 6800 series or Serial interface.
Power Supply: +3.3V.
Interface type: FPC.
Amber Backlight (Side LED).
ROHS Compliance.
Outline dimensions 67.15(W) x 63.075(H) x 5.3MAX.(D)( Include FPC,BL)
67.15(W) x 48.15(H) x 5.3MAX.(D)( Exclude FPC,BL)
mm
Viewing area 61.00MIN(W) x 31.40MIN(H) mm
Display format 128 x 64 dots
Dot size 0.42(W) x 0.42 (H) mm
Dot spacing 0.03(W) x 0.03(H) mm
Dot pitch 0.45(W) x 0.45(H) mm
Weight: TBD grams
