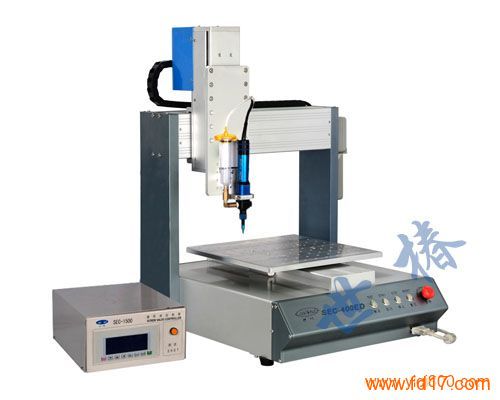

产品型号： | SEC-400EDN |
| 产品品牌： | 世椿 | |
| 产品价格： | 面议 | |
| 所 在 地： | 天津 津南区 | |
| 发布日期： | 2018-08-16 | |
 |
||
详细说明
机器性能（Features）：
1、中文手持式液晶屏操作，编程方便，易学易懂；
（Operation with handheld LCD panel teach box,which is easy to program and learn.）
2、具有画点,线,面,弧,圆.不规则曲线连续补间等功能，实现任何3D非平面轨迹路径
(Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.)
3、卓越的示教功能。支持阵列、图形化浏览、三维椭圆、常用图形库插入、群组编辑等高级功能
(Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.)
4、超大容量2G高速MiniSD文件存储器，可存储999个点胶工艺文件
(MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.)
5、胶量大小粗细、涂胶速度、点胶时间、停胶时间皆可参数设定
(The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.)
6、配合专用点胶控制器，出胶量稳定，断胶干净，不漏滴胶
(With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.)
7、具自动防固化功能，有效防止胶水固化堵塞针头
(The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.)
8、强大的PC兼容性，配合Logoshop软件，可以导入主流设计软件（如精雕、AutoCAD、CoralDraw等）生成的各种文件格式(如.NC、.AI、.DXF、.JPG、.BMP、扫描仪等)
( (Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.)
9、适用流体点胶，例如： UV胶、AB胶、EPOXY(黑胶)、白胶、EMI导电胶、SILICON、环氧树脂、瞬间胶、
银胶、红胶、锡膏、散热膏、防焊膏、透明漆、螺丝固定剂等；
（It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive
glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,
transparent paint, screw fixative and so on.）
