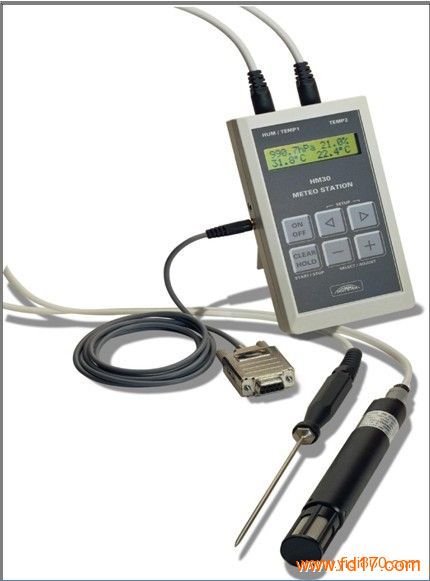

产品型号： | Thommen Meteo Station HM 30 |
| 产品品牌： | Thommen Meteo | |
| 产品价格： | 面议 | |
| 所 在 地： | 上海 嘉定区 | |
| 发布日期： | 2020-09-14 | |
 |
||
详细说明
携带方便，易操作
测量大气压力
测量海拔高度
空气中湿度温度相结合的传感器
第二阶段温度与插入式传感器
自动计算露点
具有趋势指示
RS232界面
使用方便
坚固耐用
串行接口
The Thommen HM 30 Meteo 配置连接了3种精确测量并且方便提供环境条件，取代传统的干/湿球温度计，图表和繁琐的计算。这些The Thommen HM 30 Meteo 都可以轻松准确无误的做到。而且可以接收从1秒到24小时时间的间歇数据，允许长时间观察，同时内部可以储存超过900个测量数据。
The Meteo 可在再电脑上实时展示测量数据，这个程序是那些想要对气候资料，实时进行观察研究，记录和评估的理想选择。数据同时可以展示最大/最小值的测定，以及趋势 这对于数据操作是很简单方便的，使用软件和传统的windows应用程序，使之成为一个真正节省时间以及一个功率观试仪器。图表，列表数据可以打印出来，并转移到其它Windows程序。
大气压力，海拔高度，湿度和温度，可同时以数字和图形的形式显示。测量值可被存储在电脑上缓冲，在电源故障的情况下，以防止丢失。此外，测量的时间间隔可选择为长期测量。
同时还具有可编程序的报警值，平均值，差数和最大最小值
•Portable, easy to use
•Barometric pressure
•Measures Altitude
•Humidity/air temperature with combined sensor
•Second temperature with insertion sensor
•Automatic Dew point calculation
•Trend indication
•RS 232 interface
•Easy to use
•Rugged
•Serial Interface
The Thommen HM 30 Meteo Station combines all three measurements to accurately and easily provides environmental conditions. Instead of the wet/dry bulb thermometers, charts, and cumbersome computations, the Meteo Station does this easily and accurately. It can take data in intervals from 1 second to 24 hours, permitting long term observation. It can also store internally over 900 measurements.
The Meteo Station can also display in real time the measured values on a PC. This program is ideal for those who wish to observe, record and evaluate climatic data in real time. Data can be displayed for min/max determination as well as trending. The ease of data manipulation using the software and conventional Windows applications make this a real time saver as well as a power observation instrument. Data can be printed out in graphs, lists and transfered to other Windows programs.
Barometric pressure, altitude, humidity and temperature can be displayed simultaneously in digital and graphic form. The measured values can be stored on the PC and are buffered to prevent loss in case of a power supply failure. In addition, the measuring interval is selectable for long term measurements.
There are also programmable alarm values, mean value, difference and min./max. Values.
Parameter Range Resolution Accuracy fs +/_ 1 digit
Barometric pressure 9-30” H2O 0.01”H20 +/-0.01”H2O
Humidity 0-100% rH 0.1% rH +/-1.5% rH
Temperature
Sensor 1 -40C to +60C 0.1 deg C +/-0.3 deg C
Temperature
Sensor 2 -50C to +200C 0.1 deg C +/-0.3 deg C
Altitude -1500 ft to 30,000 ft 1 ft +/-30 Ft
+/-6 ft (D￡1500 ft)
SPECIFICATIONS:
Media: Any non corrosive gas
Operating Temp: 32F to 125% F Compensated
Humidity: 0-95% RH non-condensing
Sample Rate: 2-3 / sec
Power Supply: 9V Battery, (~50 hr use)
Size: 3”x1.5”x ¾”
Weight: 4 oz.
