产品型号： | CA-23RP、CA-23R、CA-23RS |
| 产品品牌： | DIAMOND | |
| 产品价格： | 面议 | |
| 所 在 地： | 广东 深圳市 | |
| 发布日期： | 2019-02-22 | |
 |
||
详细说明

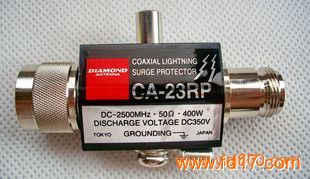

CA-23RP 2.5GHz 200W coaxial lightning surge
Protector
with connector N
Description
The surge protector is a lightning arrestor of coaxial construction. This device designed to absorb the surge of lightning s
trikes on an antenna at the top of a building and ground it,thus providing full lightning protection for transceivers,receivers,etc.
Package
1 x CA-23RP coaxial lightning surge protector
If you have any question,please be free to contact us!!!
More quantity,please be free to contact us!!!
Specification
Frequency range DC2500MHz
VSWR Less than1.1
Loss Less than 0.2dB
Withstand power 400W PEP
Voltage at discharge start DC350V±15%
Discharge voltage of shock wave(1 x 40)S 1,000V
Withstand current of shock wave(1 x 40)S 6,000A
Repetitive discharge of shock wave(1 x 40)S 500A,over 500 times DC350V±20%
Insulating resistance DC 100V Over 10,000M
Connector N Type
Outer dimensions (Max.value incl.connector) 77W x 41H x 20Dmm
Weight 114g
DIAMOND（钻石）CA-23R、CA-23RP、CA-23RS天馈避雷器，天馈防雷器
产品型号：CA-23R，CA-23RP，CA-23RS
产品品牌：DIAMOND（钻石）
型号 CA-23R CA-23RP
接口 N 接口 N 接口
频率范围 DC-2500MHz DC-2500MHz
VSWR <1.2:1 <1.2:1
插入损耗 <0.2dB <0.2dB
功率 200W PEP 200W PEP
放电电压 DC230V±15% DC230V±15%
脉冲放电电压（1x40）us 1000V 1000V
脉冲放电电流（1x40）us 6 KA 6 KA
（1x40）us 500A 重复放电，次数大于500次 DC230V±20% DC230V±20%
100V 绝缘电阻 >10,000MΩ >10,000MΩ
连接器 N-R/N-R N-R/N-P
外形尺寸 78×41×20mm 76×41×20mm
重量 100g 110g
深 圳 市 科 盈 讯 电 子 技 术 有 限 公 司
电话：0755-88876858 、88856376
详情请登陆：http://www.coexun.com
