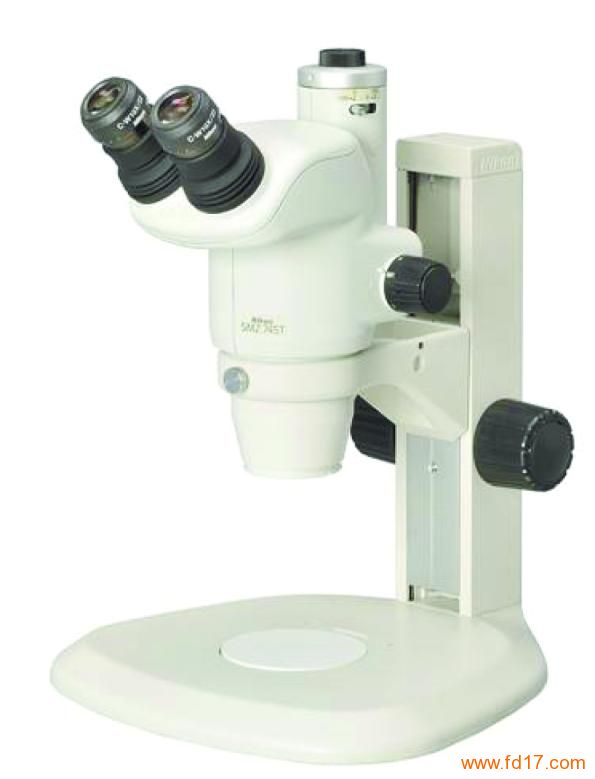

产品型号： | SMZ745T |
| 产品品牌： | 尼康 | |
| 产品价格： | 面议 | |
| 所 在 地： | 北京 朝阳区 | |
| 发布日期： | 2009-08-10 | |
 |
||
详细说明
New Main Features
1) Trinocular optical head is ideal for monitoring and capturing image
The SMZ745T incorporates an optical path switch that enables easy switchover between eyepiece and camera.Nikon Digital Sight series camera for microscopes or a CCD camers can also be attached for observation and image capturing with a monitor.
2) 7.5X zoom : the most powerful in the class
The SMZ745T boasts a 7.5X zoom.The zoom range of 0.67x to 5x provides a broad observation range.
3) 115mm working distance:the longest in the class
As well as high zoom ratio and magnification,the SMZ745T offers an unrivales 115 mm working distance.
4) Designed for on-site use
The anti-mold,anti-electrostatic design of the SMZ745T makes it suited for on-site use.
Specitications
Total magnification range 3.35-300x,depending on eyepiece and auxiliary objective used
Zooming ratio 7.5:1(approx)
Zooming range 0.67-5x
Eyepiece C-W 10XB,F.N.22,with diopter adjustment
Eyepiece inclination 45º
Interpupillar distance adjustment 52-75mm
Beam split ratio(right eye) Right/photo port:100/0,0/100
Trinocular photo port magnification Tube lens 0.55x built-in with C-mount
Electrostatic decay time(ESD) 1,000 V to 10V,less than 0.2sec.
Anti-mold design Standard
Working distance 115mm
Optional accessories
Eyepiece(F.N.) C-W 15x(16),C-W 20x(12.5),C-W 30X(7)
Auxiliary objectives(working distance) G-Al 0.5x(211mm),G-AL 0.7x(150mm),G-AL 1.5x(61mm),G-AL 2x(43.5mm)
Illumination systems G-LS 6V10W Illuminator,
C-DSLS 6V20W Illuminator,
C-FPS Fluorescent Ring Illuminator,
C-FIR Fiber-Optic Ring Illuminator,
C-FID Fiber-Optic Bifurcated Illuminator,
C-DS Diascopic Ilumination Stand,
C-LENDS Hybrid LED Stand
Stages C-TRS Tilting Stage,C-SSL Dia-Sliding Stage
Universal stands G-US1/US2 Universal Table Stand,Universal Stand P
